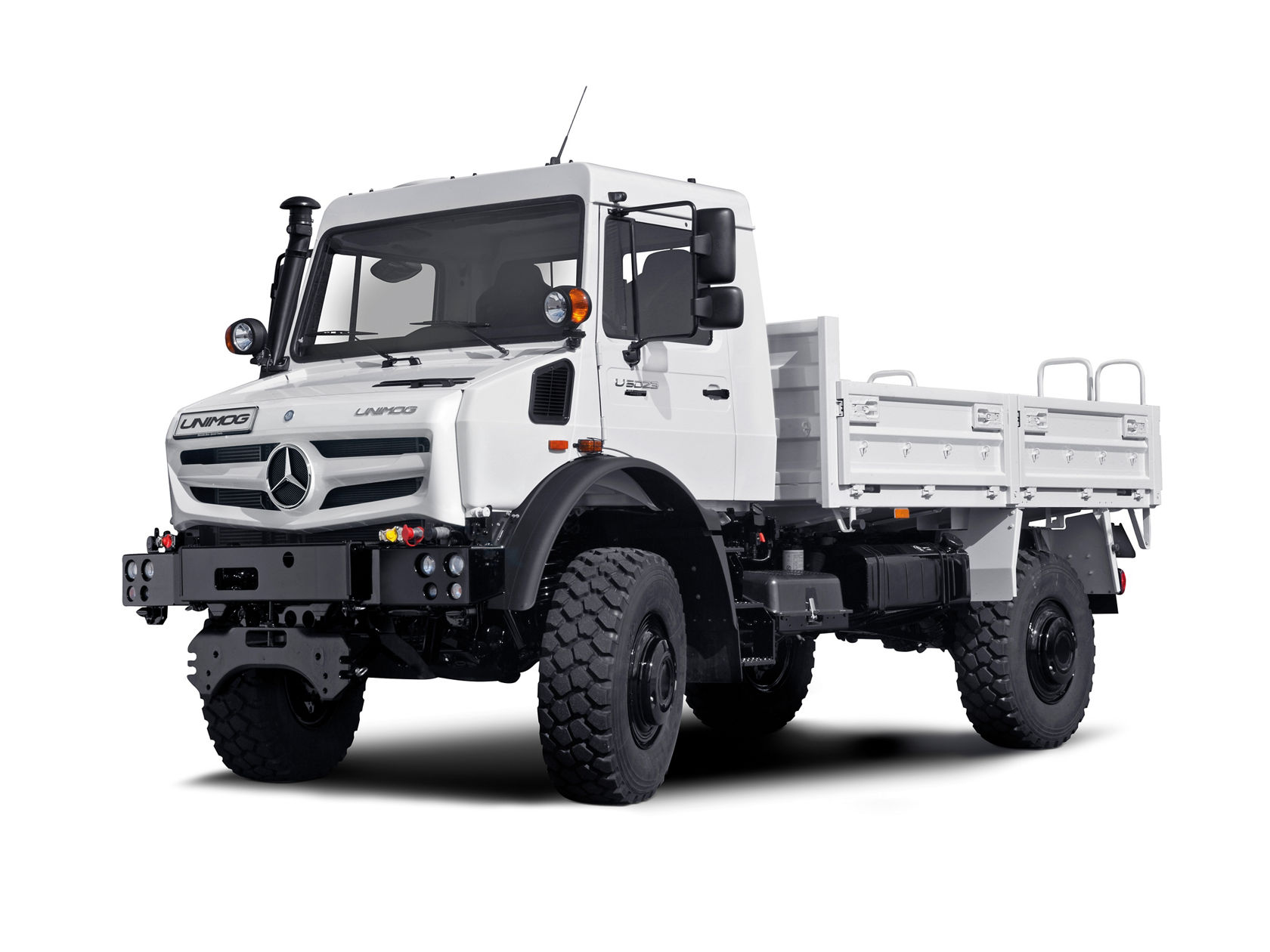

Extreme off-road Unimog
Built for extremes.
If your everyday life involves extreme terrain, extreme weather conditions, or extreme tasks, you have a powerhouse at your side with the extreme off-road Unimog, which is not only reliable but also extremely robust.
Highlights
Setting standards with the Unimog.
Where the road ends, the path for the extreme off-road Unimog begins: All-wheel drive, high fording capability, and the extremely twistable chassis make it possible. This is how you bring teams, materials, or heavy equipment to remote deployment sites.
- Three attachment and implement spaces

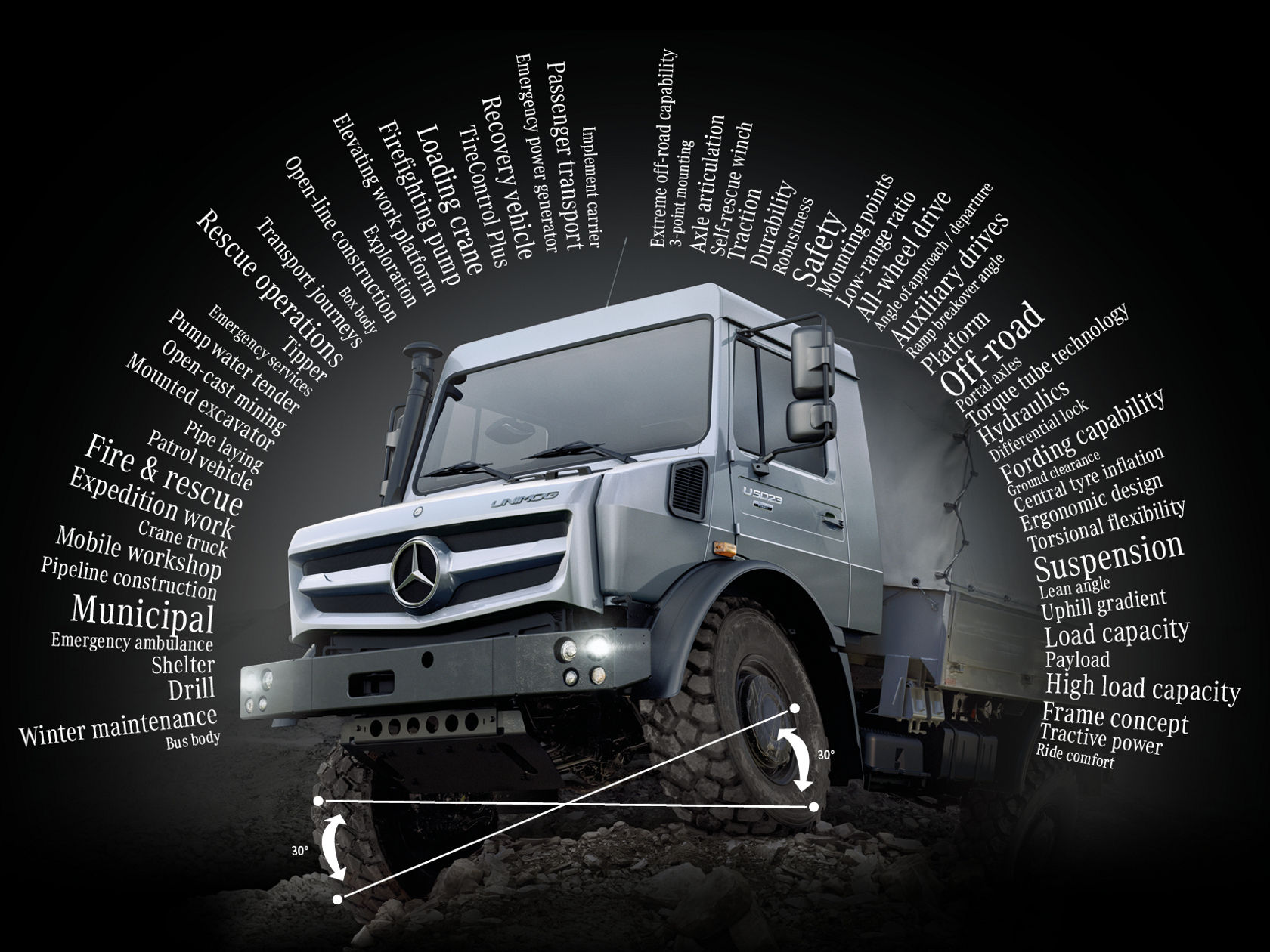

- 30° axle articulation
- 1.2 m fording depth
With the Unimog, you get more than just a vehicle. Standardised implement and attachment options mean that the range of applications is virtually limitless.
30° axle articulation enables optimal traction, even on difficult terrain.

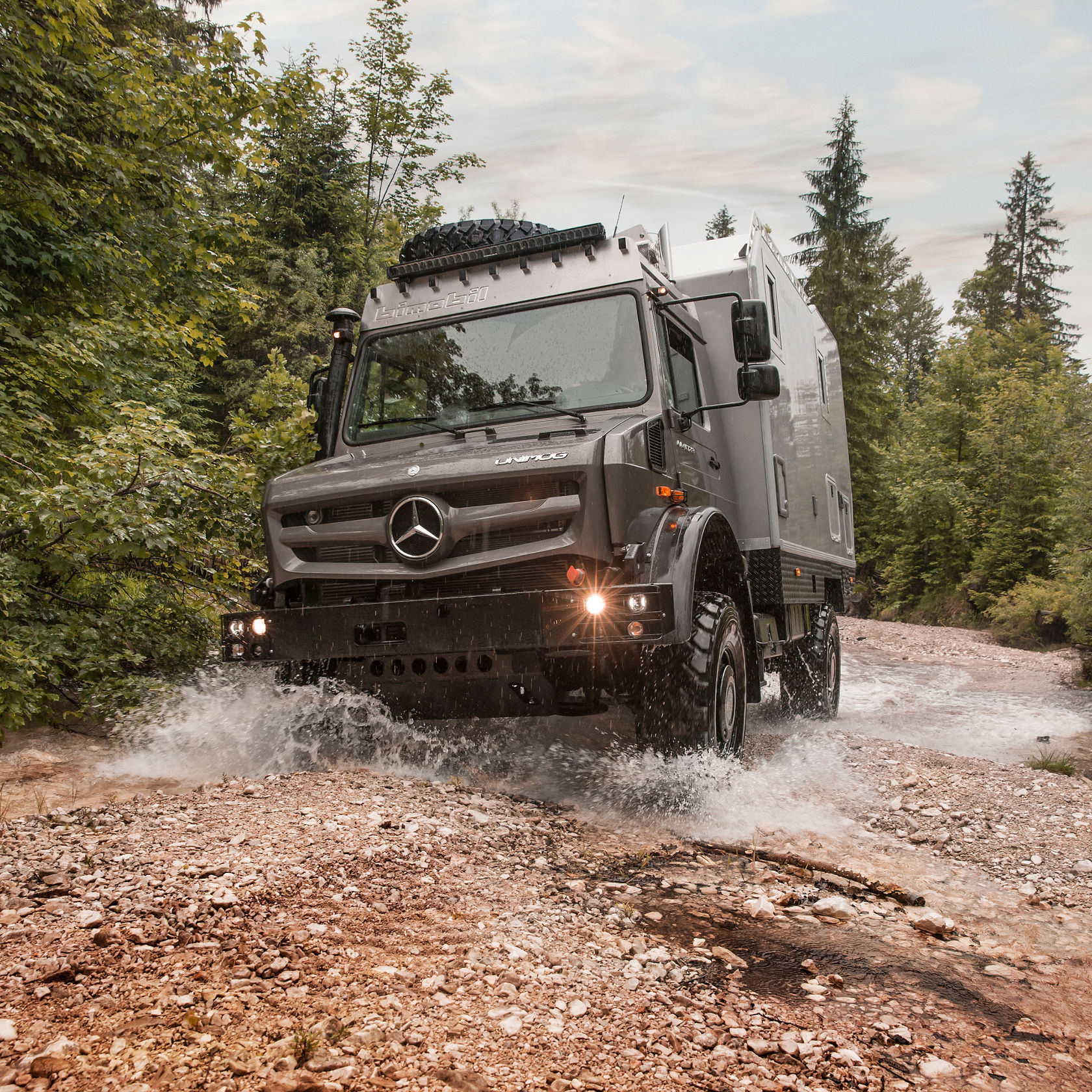

The Unimog's fording capability allows you to cross rivers, streams, or flooded areas up to a depth of 1.2 m.
Drives
On the road with momentum.
Whether you're on the motorways at up to 89 km/h or moving at walking pace: With the Unimog, you cut efficiently at any speed range. Because your truck has a drivetrain with efficient engines from Mercedes‑Benz Trucks as well as a powerful transmission, allowing it to handle high payloads with its robust axles.
- 8-speed EPS transmission with off-road gear group
- Automated gearshift (EAS)
- Engageable all-wheel drive
- Electronic Quick Reverse (reversing gearshift)
- Powerful 4-cylinder engine with 170 kW and 900 Nm torque
- Compliance with the Euro VIe emissions standard
- Robust portal axles
- Pneumatic disc brakes as standard
- Tire pressure control system TireControl plus with practical operation ex-works
- Off-road ABS
- 3 individually engageable differential locks
Attachment options
Versatile off-road.
Mechanical, hydraulic and electric drives as well as interfaces open up numerous opportunities for different implements and bodies. Mercedes‑Benz Trucks has been cooperating with international equipment manufacturers and bodybuilders for decades. The standardised attachment points make it easy to attach bodies and change implements.
Attachment options
Sets the standards off-road.
Whether your mission takes you across gravel, snow, sand or unpaved roads: The extreme off-road Unimog gets through it when others give up. And it brings has the necessary tools on board so you can accomplish your tasks on-site.
Versatile attachment options
With numerous standardised attachment points, you can securely and stably attach accessories and attachments.
- Standardised front mounting plate for attachments up to 1.5 t
- Mounting brackets for compressors or major assemblies
- Winch holder
- Frame mounting brackets
- Mounting parts for platforms or box bodies
- Subframe for special bodies
If, for example, you want to use water pumps or hydraulic pumps, the engine-powered PTO offers versatile deployment potential. Optionally, you can also opt for the proven transmission PTOs, for example, a fast one for hydraulic pumps and a very fast one for fire service pumps. The special subframe is used for the torsion-free mounting of platforms or box bodies.

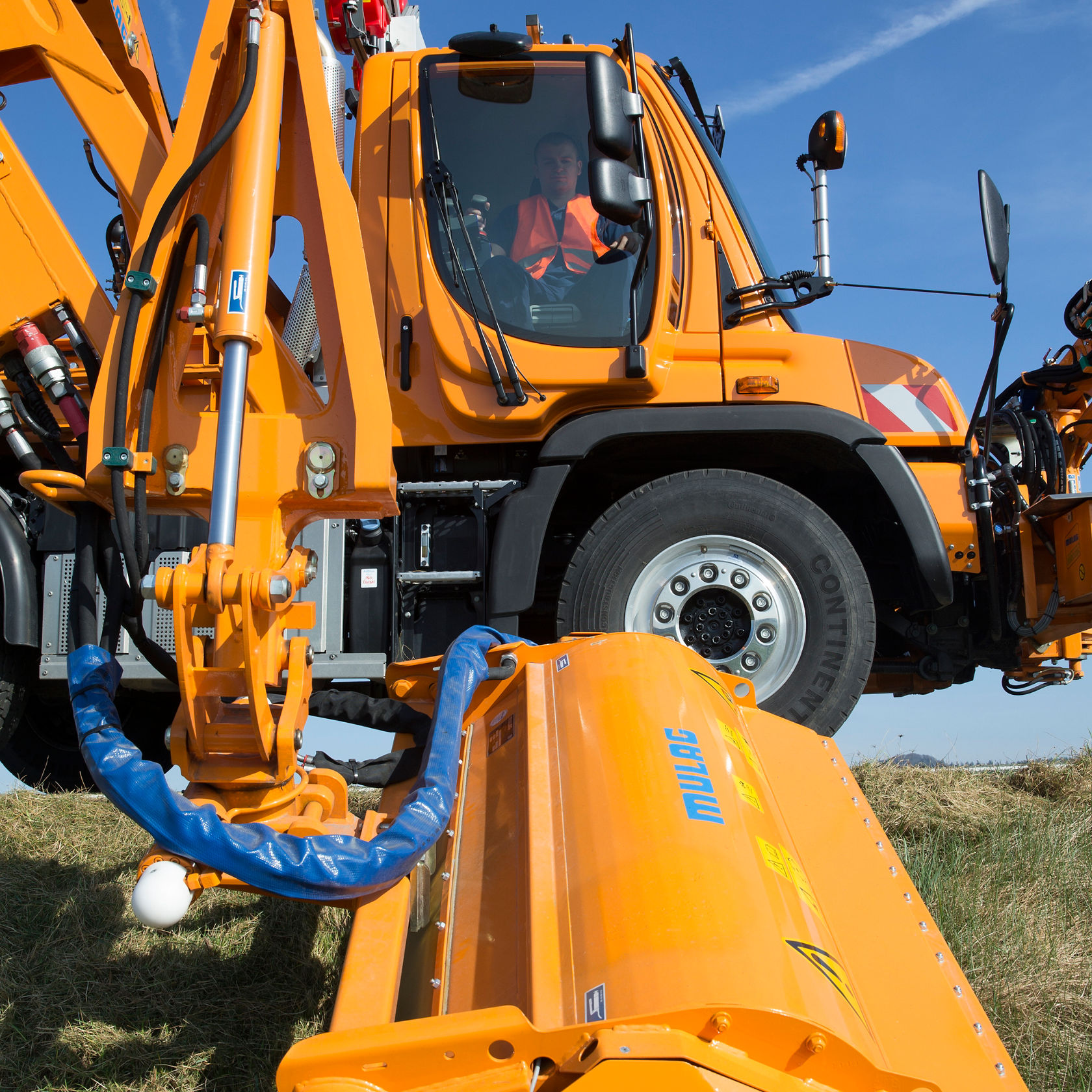

With the vehicle's hydraulics, you can operate equipment such as self-recovery winches, snow ploughs, front loaders, or hydraulic tools. The single-circuit hydraulic system delivers a working pressure of 240 bar with a flow rate of 60 l/min and a pump capacity of 24 kW. Standardised plug connections are also available at the front and rear. For electrical power supply to the equipment, you can rely on 4 standardised sockets.
Whether in disaster relief or other extreme situations: You can also rely on the Unimog for demanding tasks and challenges.
Group dynamics.
If you want to transport not only materials but also many people, you can order the Unimog with a double cab. The front seat bench has space for 3 people, the rear bench offers 4 seats, allowing you to transport a total of 7 people. The rear bench comes with individual seat belts, is foldable, and provides plenty of storage space underneath for tools, equipment, or personal items. The crew can easily get in and out through 4 wide-opening doors. And if you need extra comfort, you can opt for 2 air-sprung individual seats instead of the rear bench.
Off-road capability
Barely any obstacles.
The extreme off-road Unimog combines high ground clearance with a low centre of gravity. This provides you with maximum stability even on steep terrain and enables highly flexible movement across challenging terrain.
Off-road capability
Unique frame design.
Thanks to the offset vehicle frame, the heart of the Unimog’s off-road capability, you remain flexible and stable in any application. The cranked design, together with the portal axles, enables high ground clearance with a low vehicle centre of gravity. And because the frame is fully welded, it can permanently withstand torsional stress. Its torsional flexibility, combined with torque tube technology and the three-point mounting of the engine, transmission, cab, and bodies, allows a diagonal articulation of up to 600 mm.
The axle connection via torque tube, thrust ball on the transmission, and coil springs with vast spring travel allows for axle articulation up to 30°, ensuring easy handling and high levels of grip. The encapsulation protects the Unimog’s drive shafts from contamination such as dust, water, and other environmental factors encountered off-road.
The typical portal axles of the Unimog offer you great ground clearance with a low vehicle centre of gravity. And with the asymmetrical arrangement of the axle differentials, you can more easily drive over obstacles. The axle suspension is reinforced and can withstand very heavy loads. The axle layout is also designed to be robust: This makes high standard load ratings possible.
Portal axles
1. Wheel cluster
2. Axle centre
3. Wheel centre
Thanks to its short frame overhangs and high ground clearance, the Unimog provides large approach and slope angles. Together with its climbing ability of up to 100%, you can also tackle steep sections of terrain.
The principle is: The rear wheels follow the front wheels in the same track. This increases traction and protects the ground surface.
Whether you're on the road, in sand or off-road, you can adjust the tyre pressure to suit the surface. With three pre-configured modes —“Road,” “Sand,” and “Rough Terrain” — you intuitively select the correct setting. Even nature benefits from TireControl plus: Driving off-road with lowered tyre pressure improves traction while also protecting the ground surface.
Comfort and design
Ergonomics
Get in, feel comfortable, and start driving: With the comfortable seat position and the clearly arranged combined instrument cluster, the Unimog offers you intuitive operation and increased safety in operation.
Comfort and design
Ergonomics
Sophisticated operating concept.
In the Unimog, you experience a work environment that meets your daily demands. The cockpit makes your work easier with a well thought-out operating concept. Thanks to the ergonomic arrangement of control elements, you have everything under control. This allows you to complete your tasks calmly and comfortably.
Progress ergonomically.
In the Unimog, the cab supports you in your work - especially when you have to make quick decisions. Control elements are intuitively arranged and easy to use. You sit in the low-vibration area behind the front axle, ensuring a comfortable ride even off-road. Daytime running lights and headlights provide excellent visibility and enable you to keep an eye on the driving area.
- Interior.
- Instrument cluster.
- Steering-column stalk switch.
- Controls.
- Steering column.
The Unimog web configurator
Discover the Unimog in 3D now.
Customise your Unimog virtually according to your preferences by choosing from a wide range of equipment and vehicle options. Take a 360-degree tour of the cab and see for yourself the conceptual advantages of the Unimog.
Safety
Safely across terrain.
Whether on ice and snow or in the desert, in water or on steep slopes: With your Unimog, you’re travelling as safely as possible. The robust, welded frame, the all-steel cab, the fording depth of 1.2 m, and the torque tube concept protect you and your vehicle. For additional safety on almost any surface, there's off-road ABS. The low vehicle centre of gravity gives you maximum stability even on extreme inclines.
Advice and services
Very well prepared.
Our service partners set standards in terms of quality, cost, and environmental awareness – day in, day out. In the event of a repair, Mercedes-Benz Trucks Service is there for you with Genuine Parts. With attractive warranty packages, you can protect your truck and ward against unforeseen financial risks. Choose the package that best suits your needs and go well-prepared into your work. With the warranty packages that can be added when purchasing a new vehicle, you keep your truck running.
Custom Tailored Trucks
Your truck as a custom-built model
If you want your truck to be as unique as you are, then Mercedes‑Benz Trucks factories in Wörth and Molsheim are here for you. Here, professionals fulfill those special requirements that go beyond standard production. You are also provided with a manufacturer's warranty for these custom-made vehicles and benefit from the worldwide Mercedes-Benz Trucks Service.
Cooperation with bodybuilders
Mercedes-Benz Trucks has been working closely with international and certified equipment and bodybuilders for decades. This incorporates the experience and expertise of the partners in system solutions, which are precisely tailored to your needs.
The close cooperation has a clear focus: Keeping you safe. It's not only about new attachment and body solutions but also about fundamental vehicle characteristics. The best results are achieved when everyone works hand in hand.
Unimog Part of a Legend
Birth of a legend
Many legends are born out of hard times; the Unimog is no different. Built in the aftermath of World War II, the Unimog was the brilliant idea of a former head of aeroengine design and was constructed to take on the toughest tasks from the very beginning. Created to go anywhere and complete any job easily, the first Unimog rolled off the production line in 1948. Earning its badge in 1953, the Mercedes star would sit proudly on the front of the Unimog S from 1955 to 1980 as it supported the armed forces and took explorers on new adventures.
Unimog Part of a Legend
Birth of a legend
As more people discovered what this workhorse could do, new models were developed to suit different challenges. The bigger, better 406 series came in 1963, with the 425 series taking on the heavy-duty work from 1965. Between 1985 and 1996 the Unimog got its reputation as a master of all tasks, with the 408 and 419 series built to support local authorities back home. Today, new technologies such as a Euro VI engine, torque tube driveline and VarioPilot mean the latest Unimog models can take on anything modern businesses can throw at it. Whatever the task or terrain, a ‘can-do attitude’ still lies at the very heart of every Unimog. A true icon. A true legend.
Unimog Benefits.
It's efficient.
Equipped with a Euro VI engine, the Unimog can reach a top speed of 56 mph (where applicable) so you can get to work quickly and fuel efficiently with very competitive consumption compared to the equivalent tractor.
It's agile.
Small but perfectly manoeuvrable wheelbases (from 2.8m long) will get you out of the trickiest, tightest places.
It's tough
Equipped with a Euro VI engine, the Unimog can reach a top speed of 56 mph (where applicable) so you can get to work quickly and fuel efficiently with very competitive consumption compared to the equivalent tractor.
It's comfortable
For legendary comfort, look no further. Our cabs are spacious, with comfortable seats and all-round visibility - perfect for your drivers.
It's cared for
With 1400 hour service intervals and three year warranty as standard. Additionally choose a repair and maintenance package to keep your Unimog as reliable as the day it was built.
It's affordable
Select a flexible, industry-leading finance package to get the model you need with terms that suit your cash flow, while benefiting from the class-leading residual values.
It's got back-up
Wherever you and your Unimog end up, our UK-wide team of heroes will be on hand to help.
Unimog - Dealer Locator
Specialist Unimog Sales & Aftersales Dealers
Lloyd Ltd
(Newcastle)
Ponteland Road,
Throckley,
Newcastle Upon Tyne,
NE15 9EP
0191 2677555
lloyd.ltd.uk/mercedes-benz-unimog
South Cave Tractors Ltd
(Brough)
Common Lane,
Brough,
HU15 2RD
01430 424233
southcavetractors.com
Arthur Ibbett Ltd
(St. Neots)
River Lane,
Great Paxton,
Saint Neots,
PE19 6RD
01480 473452
ibbetts.co.uk/unimog-new-sales
Rygor Commercials
(Westbury)
23 The Broadway,
Westbury,
BA13 4JX
01373 855555
rygor.co.uk/rygor-truck/unimog
Mercedes-Benz Unimog Aftersales Dealers
South.
Motus Group
(Newmarket)
Pines Industrial Estate,
Fordham Road,
Fordham, Newmarket,
CB8 7LG
01638 720204
motustruckandvan.co.uk
Motus Group
(Norwich)
39 Hurricane Way,
Airport Industrial Estate,
Norwich, Norfolk, NR6 6HE
01603 428000
motustruckandvan.co.uk
Motus Group
(West Thurrock)
Central Avenue,
West Thurrock, Essex,
RM20 3WD
01708 892500
motustruckandvan.co.uk
Sparshatt Truck & Van
(Sittingbourne)
10 Eurolink Industrial Estate,
Castle Road,
Sittingbourne,
ME10 3RN
03443 961122
sparshattgroup.com
City West Commercials
(Roche)
Victoria Business Park,
Roche,
Victoria,
Saint Austell,
PL26 8LX
01726 421167
citywestcommercials.co.uk
City West Commercials
(Avonmouth)
Kings Weston Lane,
St Andrews Road,
Avonmouth,
Bristol,
BS11 9BY
0117938 7770
citywestcommercials.co.uk
City West Commercials
(Exeter)
Greendale Business Park,
Woodbury Salterton,
Exeter,
Devon,
EX5 1EW
01392 360555
citywestcommercials.co.uk
Ferndown Commercials Ltd
14-20 Haviland Road,
Ferndown Industrial Estate,
Wimborne,
BH21 7RG
01202 070338
ferndowncommercials.co.uk
ETS Trucks
(Blandford Forum)
Shaftesbury Lane,
Blandford Forum,
Dorset,
DT11 7FB
01258 480404
Rossetts Commercials
(Eastbourne)
7 Birch Road,
Eastbourne,
BN23 6PD
01323 462500
rossetts.co.uk
Rossetts Commercials
(Aldershot)
Unit 1,
Eastern Road
Aldershot,
BN23 6PD
01252 353400
rossetts.co.uk
Arthur Spriggs & Sons Ltd
(Tewkesbury)
Cowfield Mill
Northqay Lane
Tewkesbury
GL20 8HG
01684 273900
arthurspriggs.co.uk
Midlands.
Mertrux Truck & Van
(Derby)
10 Chequers Road,
West Meadows Industrial Estate,
Derby,
DE21 6EN
01332 290290
mertrux.com
North.
A C Price (Engineering) Ltd
(Ingleton)
Ingleton Industrial Estate,
New Road,
Ingleton,
LA63NU
01524 242333
acprice.co.uk
Bell Truck & Van
(Longbenton)
Whitley Road,
Bellway Industrial Estate,
Newcastle upon Tyne,
Longbenton,
NE12 9SW
0191 2700787
belltruckandvan.co.uk
Bell Truck & Van
(Billingham)
Macklin Avenue,
Billingham,
TS23 4BY
01642 561333
belltruckandvan.co.uk
Ciceley Commercials
(Carlisle)
27 Peterfield Road,
Kingstown Industrial Estate,
Carlisle,
CA3 0EY
01228 583195
ciceley.com
Ciceley Commercials
(Blackburn)
Commercial Road,
Junction 4 Intersection M65,
Darwen,
Blackburn,
BB3 0DB
01254 870970
ciceley.com
eStar Truck & Van
(Deeside)
Deeside Industrial Park,
Second Avenue, Zone 2,
Deeside,
CH5 2NX
01244 838280
estartruckandvan.co.uk
Multevo Ltd
(Darwen)
Charles Street,
Darwen,
Lancashire,
BB3 1BF
01254 703212
multevo.co.uk
BLS Truck and Van
(Aberdeen)
Hareness Road,
Altens Industrial Estate,
Aberdeen,
AB12 3LE
01224 978900
blstruckandvan.co.uk

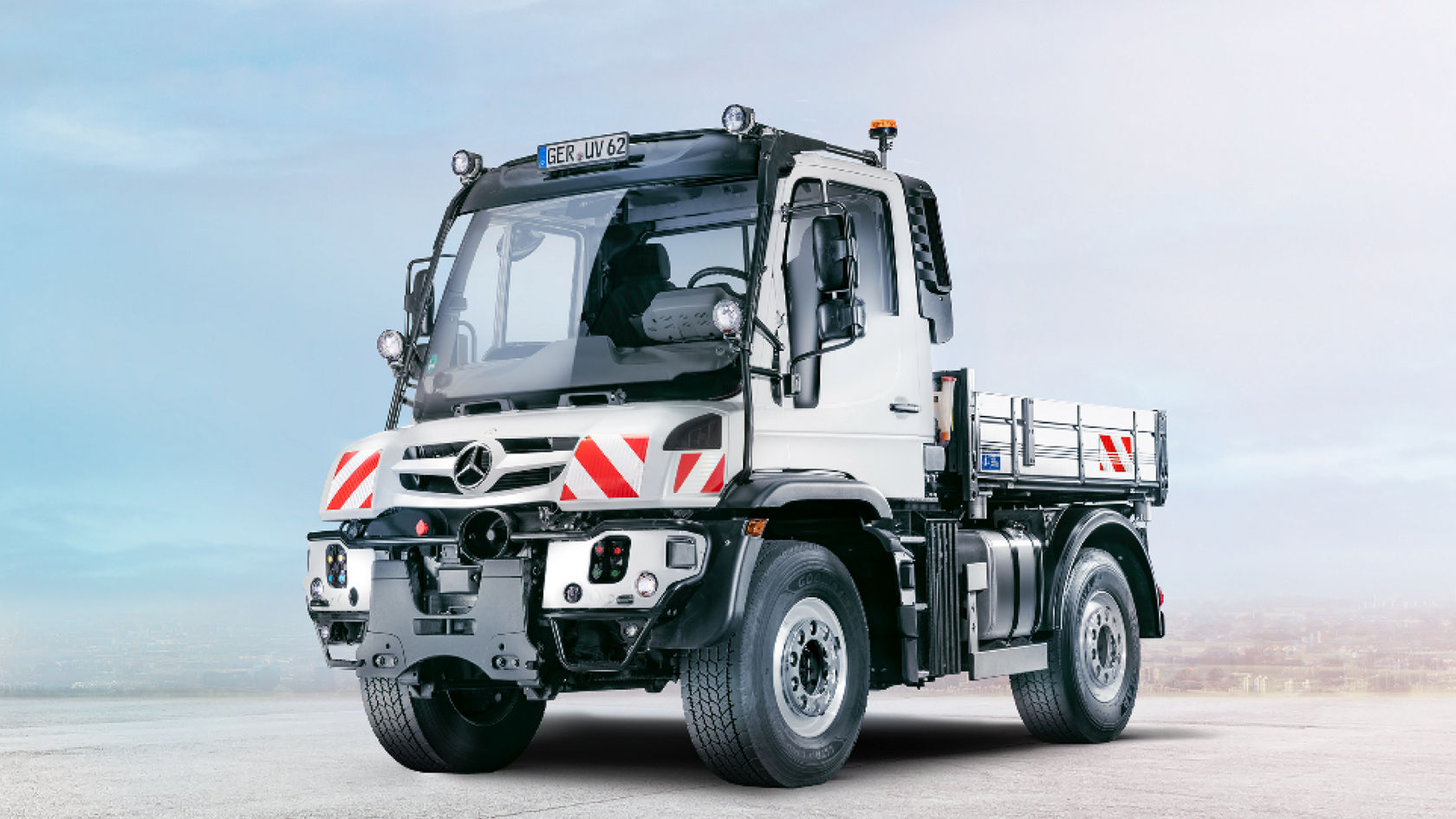

Technical data
The right choice.
The right truck for your tasks.
Learn more about the technical details of the extreme off-road Unimog.
Technical data
Specifications
Dimensions and weights.
| U 4023 | U 4023 crew cab | U 5023 | U 5023 crew cab |
| Wheelbase (mm) | Wheelbase (mm) | Wheelbase (mm) | Wheelbase (mm) |
| 3,850 | 3,850 | 3,850 | 3,850 |
| Vehicle height | Vehicle height | Vehicle height | Vehicle height |
| 2,797 | 2,797 | 2,873 | 2,873 |
| Vehicle width (mm) | Vehicle width (mm) | Vehicle width (mm) | Vehicle width (mm) |
| 2,480 | 2,480 | 2,480 | 2,480 |
| Vehicle length (mm) | Vehicle length (mm) | Vehicle length (mm) | Vehicle length (mm) |
| 6,000 | 6,000 | 6,000 | 6,000 |
| Space for installations (mm) | Space for installations (mm) | Space for installations (mm) | Space for installations (mm) |
| 4,100 x 2,280 x 1,400 | 3,100 x 2,280 x 1,400 | 4,100 x 2,280 x 1,400 | 3,100 x 2,280 x 1,400 |
| U 4023 | U 4023 crew cab | U 5023 | U 5023 crew cab |
| Permissible maximum gross combination weight (with corresponding special equipment) (tons) | Permissible maximum gross combination weight (with corresponding special equipment) (tons) | Permissible maximum gross combination weight (with corresponding special equipment) (tons) | Permissible maximum gross combination weight (with corresponding special equipment) (tons) |
| 7.5/8.0**/10.3 | 7.5/8.0**/10.3 | 12.5/13.0**/14.5 | 12.5/13.0**/14.5 |
| Permissible axle loads: Weight on front axle (tons) | Permissible axle loads: Weight on front axle (tons) | Permissible axle loads: Weight on front axle (tons) | Permissible axle loads: Weight on front axle (tons) |
| 4.1/4.1**/4.6 | 4.1/4.1**/4.6 | 5.5/5.7**/6.4 | 5.5/5.7**/6.4 |
| Permissible axle loads: Weight on rear axle (t) | Permissible axle loads: Weight on rear axle (t) | Permissible axle loads: Weight on rear axle (t) | Permissible axle loads: Weight on rear axle (t) |
| 4.6/4.6**/6.0 | 4.6/4.6**/6.0 | 7.1/7.9**/8.8 | 7.1/7.9**/8.8 |
* Specifications depending on load and tyres
** Standard configuration
Vehicle speeds.
| U 4023 | U 4023 | U 5023 | U 5023 |
| Forwards | Reverse | Forwards | Reverse |
| Basic gear 1 | Basic gear 1 | Basic gear 1 | Basic gear 1 |
| 6.6 | 4.4 | 6.9 | 4.5 |
| Basic gear 2 | Basic gear 2 | Basic gear 2 | Basic gear 2 |
| 9.6 | 6.3 | 9.9 | 6.5 |
| Basic gear 3 | Basic gear 3 | Basic gear 3 | Basic gear 3 |
| 14.5 | 9.5 | 15.0 | 9.9 |
| Basic gear 4 | Basic gear 4 | Basic gear 4 | Basic gear 4 |
| 19.7 | 13.0 | 20.4 | 13.4 |
| Basic gear 5 | Basic gear 5 | Basic gear 5 | Basic gear 5 |
| 29.0 | 19.1 | 30.1 | 19.8 |
| Basic gear 6 | Basic gear 6 | Basic gear 6 | Basic gear 6 |
| 41.9 | 27.5 | 43.4 | 28.5 |
| Basic gear 7 | Basic gear 7 | Basic gear 7 | Basic gear 7 |
| 63.5 | 41.7 | 65.8 | 43.2 |
| Basic gear 8 | Basic gear 8 | Basic gear 8 | Basic gear 8 |
| 86.4 | 56.7 | 89.6 | 58.8 |
| U 4023 | U 4023 | U 5023 | U 5023 |
| Forwards | Reverse | Forwards | Reverse |
| Off-road gear 1 | Off-road gear 1 | Off-road gear 1 | Off-road gear 1 |
| 2.1 | 1.4 | 2.2 | 1.4 |
| Off-road gear 2 | Off-road gear 2 | Off-road gear 2 | Off-road gear 2 |
| 3.0 | 2.0 | 3.1 | 2.0 |
| Off-road gear 3 | Off-road gear 3 | Off-road gear 3 | Off-road gear 3 |
| 4.6 | 3.0 | 4.7 | 3.1 |
| Off-road gear 4 | Off-road gear 4 | Off-road gear 4 | Off-road gear 4 |
| 6.2 | 4.1 | 6.4 | 4.2 |
| Off-road gear 5 | Off-road gear 5 | Off-road gear 5 | Off-road gear 5 |
| 9.1 | 6.0 | 9.4 | 6.2 |
| Off-road gear 6 | Off-road gear 6 | Off-road gear 6 | Off-road gear 6 |
| 13.1 | 8.6 | 13.6 | 8.9 |
| Off-road gear 7 | Off-road gear 7 | Off-road gear 7 | Off-road gear 7 |
| 19.9 | 13.1 | 20.6 | 13.6 |
| Off-road gear 8 | Off-road gear 8 | Off-road gear 8 | Off-road gear 8 |
| 27.1 | 17.8 | 28.1 | 18.4 |
* Values for standard tyres in km/h. Vehicle speeds may differ with other tyres.
Contact
Tailored advice and expert service: Find your nearest Mercedes-Benz Unimog dealer here.
You may also be interested in:
All model series
For a long truck life
Trucks you can trust
Images and texts may include accessories and special equipment that do not form part of the standard delivery package. Images shown must be considered examples only and do not necessarily reflect the actual state of the original vehicles. The appearance of the original vehicles may differ from these images. Subject to changes without notice. Images and texts may also include models, support services, services and products that are not available in certain countries.
As an internationally operating company, equal opportunities, diversity, openness and respect are among the core beliefs of Daimler Truck AG. We show this in the way we think, act and communicate. All selected terms include all genders and identities as a matter of course.
